The FIRST IMPRESSION LASTS and there is nothing quite as impactful as a perfectly designed entrance area, where visitors get on the immediate impression of the building and the people who live or work in it.
Why Entrance Matting Systems?
An efficient entrance matting system is removing dirt, moisture, and grit introduced on visitors' feet before it can be carried inside the building.
přílohy
TOP CLEAN TREND® a standard mat recommended for entrance areas in commercial and residential use where excellent absorption of moisture and removal of dirt is of prime importance.
Height | 10 - 13 mm, 17 mm, 22 mm, 27 mm |
Profile spacing | 4 mm, 8 mm |
Clean elements | Ribbed Carpet, Grooved rubber Profile, Casette Brush, Brush Stripe |
Dimension | according to orders |
Ultraflat mat - only 10 mm high.
Technical Data
Height | 10 mm |
Dimension | 65 × 47 cm |
Execution, colour | rips, anthracite, and rubber profile |
Weight | cca 2,2 kg |
Fire-resistance | CfI-S1 (DIN EN 13501-1) |
TOP CLEAN CLASSIC is a lighter execution of Top clean Trend. Ribbed Carpet or Brush is used in inside areas. Rubber profile or Brush is recommended for outside areas.
Height | 12 mm, 17 mm, 22 mm, 27 mm |
Profile spacing | 5 mm |
Execution | ribbed carpet, grooved rubber profile, cassette brush, brush stripe, the scraper bar |
Dimension | according to order |
TOP CLEAN OBJEKT - Mats for heavy-duty for airports, railway stations, business centrum.
All profiles have highly effective impact noise insulation
Height / Width of profile / Thickness of profile | 22 mm / 40 mm / 3,0 mm |
Profile spacing | 5 mm |
Execution | ribbed carpet, grooved rubber profile, cassette brush |
Dimension | according to order |
TOP CLEAN HIGH Mat is suitable for extra high load for airports, railway stations, business centrum, supermarkets, hotels.
Height / Thickness | 42 mm / 2,5 mm |
Distance / Width | 5 mm / 29 mm |
Cleaning execution |
rips, grooved rubber profile, casette brush |
Dimension | according to order |
Frames are produced from a 3 mm profile in aluminum, brass, or stainless steel.
All frames are supplied precision drilled accurately mitered corners and specially designed corner pieces to maintain an accurate and square assembly.
Height of mats | Frame Height / Width / Thickness |
Height 12 mm | Frame 15 / 20 / 3 mm |
Height 17 mm | Frame 20 / 20 / 3 mm |
Height 22 mm | Frame 25 / 25 / 3 mm |
Height 27 mm | Frame 30 / 30 / 3 mm |
Height 42 mm | Frame 45 / 30 / 3 mm |

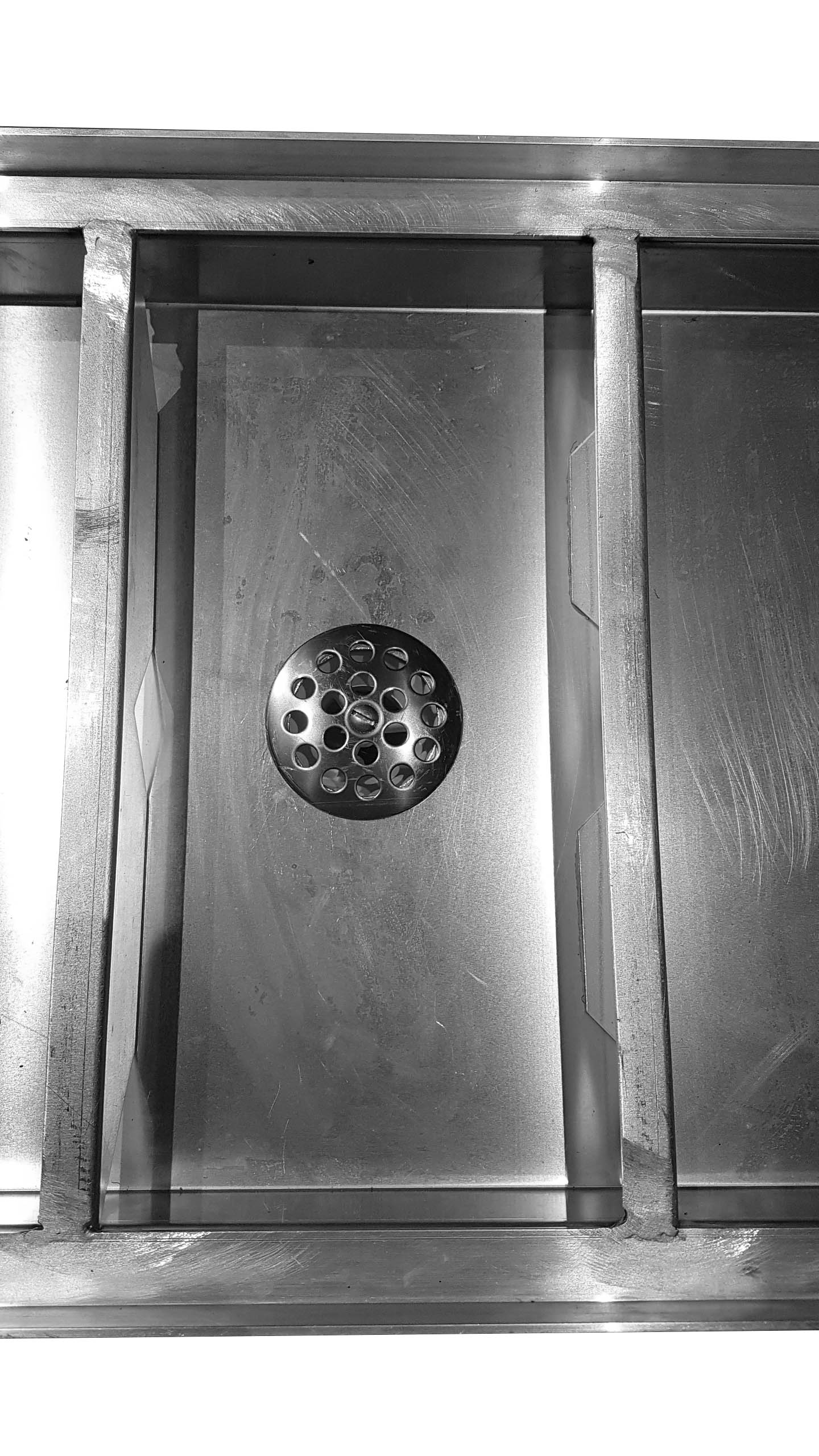

Stainless steel collection trays made of V2A material or aluminum with welded frame.

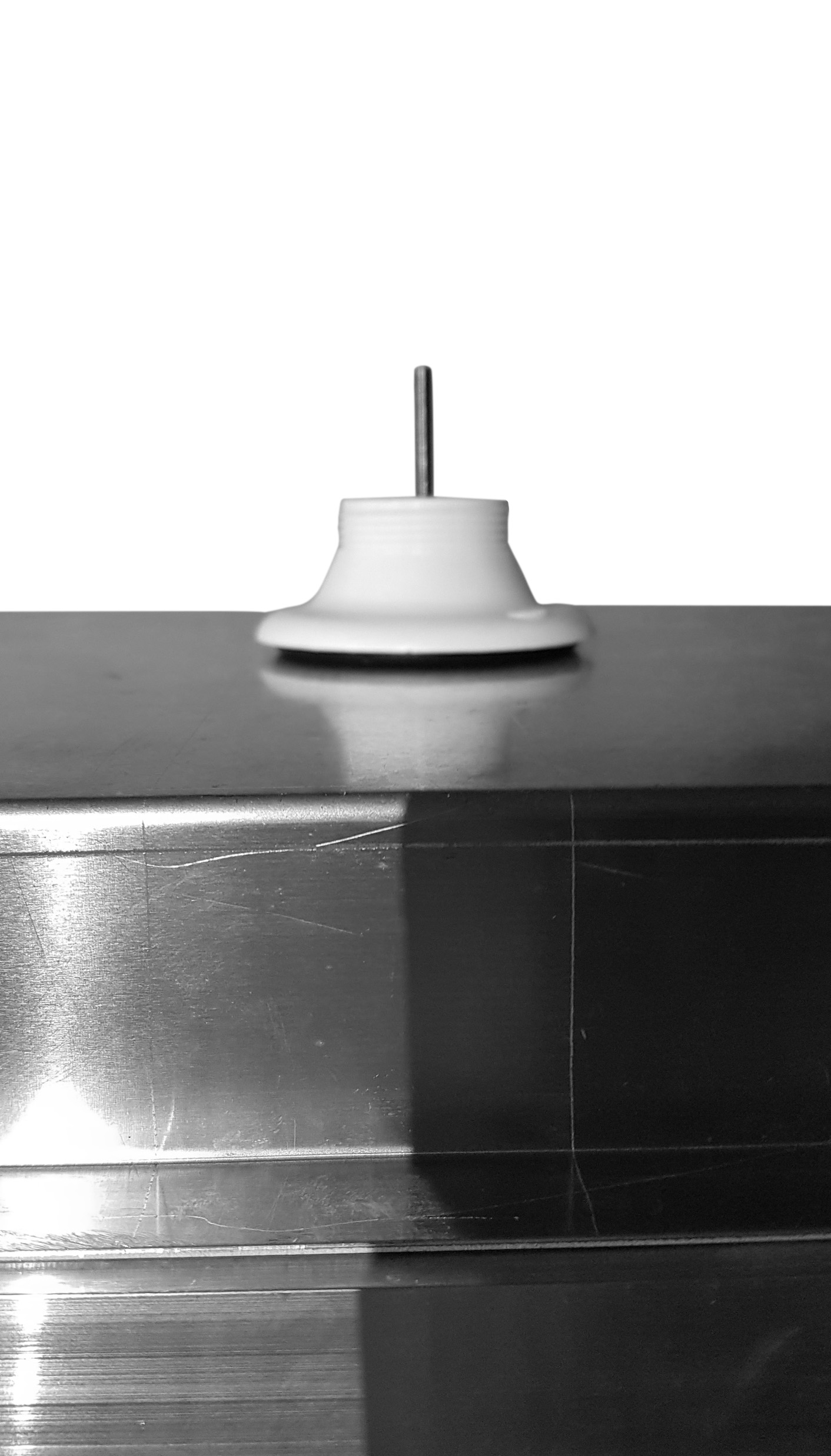

A drainage pipe should be installed for water drainage or a drain pipe with a diameter of 1 1/2 " connected to a drainage system.
Maximum dimensions of collecting trays
Standard height | Width × Length |
50 mm | 2900 mm × 1400 mm |
75 mm | 2850 mm × 1350 mm |
Matting Rauhaarrips are produced in every given dimension or in rolls UV resistant polypropylene ribbed carpet. The base of the mat is of solid rubber for antis slip and if necessary to glue it on the ground.
Thickness | 10 mm / 17 mm / 22 mm |
Width | 1000 / 2000 mm |
Length of rolls | 12 m - 24,2 m |
Colours | light-grey / matted-beige / anthracite |
Dimension | according to order |
